Vehicle-To-Grid Technology in a Micro-grid Using DC Fast Charging Architecture

Description

This price is for Indians, if you are from another country then your model price will be different it depends on your country’s currency- Chat with us on WhatsApp.

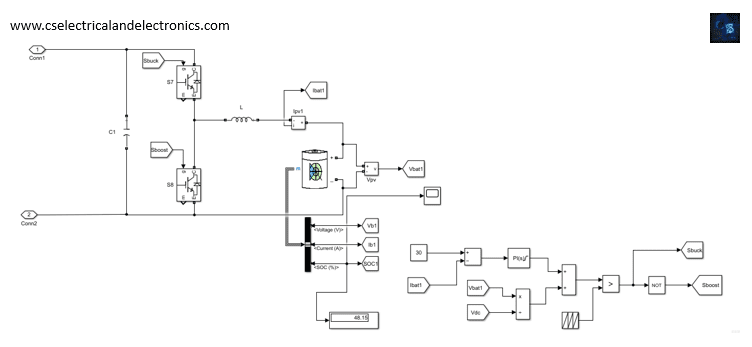

Hello guys, in this zip file you will find the Matlab Simulink model on Vehicle-To-Grid Technology in a Micro-grid Using DC Fast Charging Architecture.

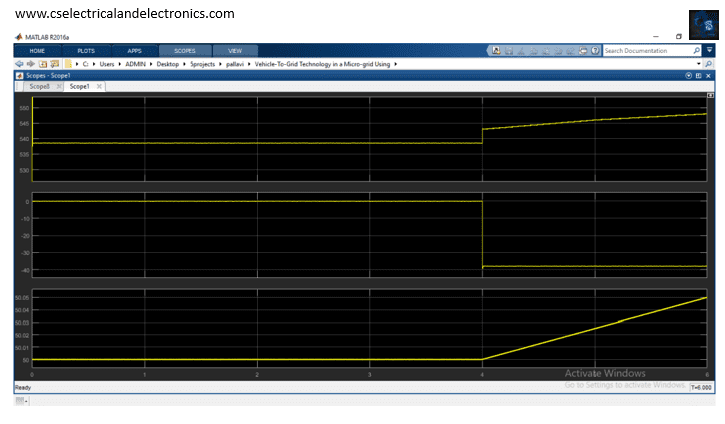

Electric Vehicle (EV) batteries can be utilized as potential energy storage devices in micro-grids. They can help in micro-grid energy management by storing energy when there is a surplus (Grid-To-Vehicle, G2V) and supplying energy back to the grid (Vehicle-To-Grid, V2G) when there is demand for it. Proper infrastructure and control systems have to be developed in order to realize this concept. Architecture for implementing a V2G-G2V system in a micro-grid using level-3 fast charging of EVs is presented in this paper. A micro-grid test system is modeled which has a dc fast charging station for interfacing the EVs. Simulation studies are carried out to demonstrate V2G-G2V power transfer. Test results show active power regulation in the micro-grid by EV batteries through G2V-V2G modes of operation. The charging station design ensures minimal harmonic distortion of grid injected current and the controller gives a good dynamic performance in terms of dc bus voltage stability.

Disclaimer:

Please note, that this product is owned by us, and if you upload this file on Youtube or Internet after purchasing it. Then you will get a copyright complaint from us.

Thanks & regards,
CS Electrical And Electronics Team
