Double Tiered Switched Capacitor Based Active Cell Balancing

Description

This price is for Indians, if you are from another country then your model price will be different it depends on your country’s currency- Chat with us on WhatsApp.

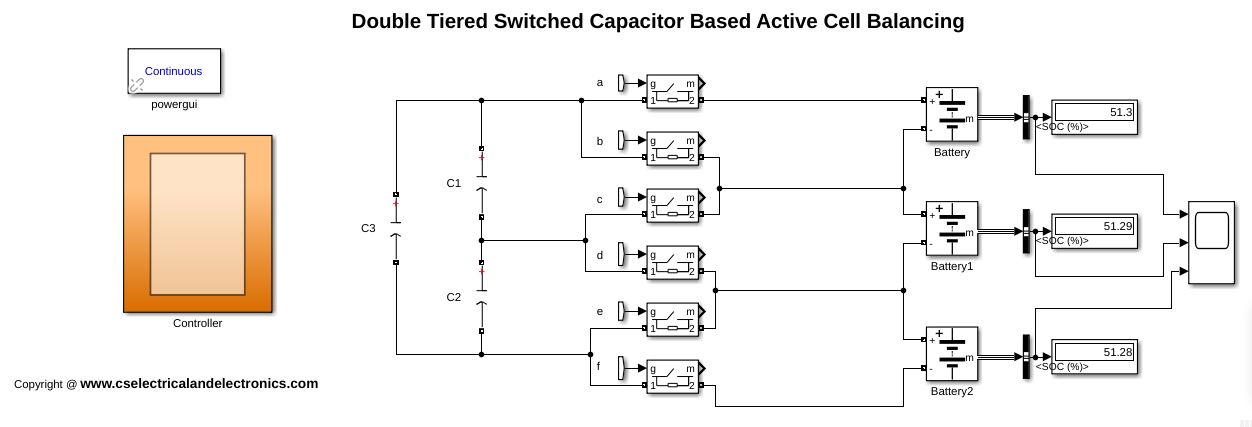

Hello guys, in this zip file you will find the Matlab Simulink model on a double tiered switched capacitor based active cell balancing.

The DTSC balancing method is a derivation of the switched capacitor method. The difference is that, the DTSC uses two capacitor tiers for energy shuttling. The advantage of the double-tiered switched capacitor over the switched capacitor method is that the second capacitor tier reduces the balancing time to more than half. In addition, it can operate in both recharging and discharging with high efficiency.
